EEPROM Serial-2Wire 16K-bit 2K x 8 1.8V/2.5V/3.3V/5V 8-Pin SOIC T/R The AT24C16C provides 16,384 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 2,048 words of 8 bits each.
5
Feb 4, 2022
Doreen Warren
What Is EEPROM?
EEPROM Serial-2Wire 16K-bit 2K x 8 1.8V/2.5V/3.3V/5V 8-Pin SOIC T/R
The AT24C16C provides 16,384 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 2,048 words of 8 bits each. This device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
AT24C16C-SSHM-T
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.34014 | $0.34 |
| 10+ | $0.32089 | $3.21 |
| 100+ | $0.30272 | $30.27 |
| 500+ | $0.28559 | $142.8 |
| 1000+ | $0.26942 | $269.42 |

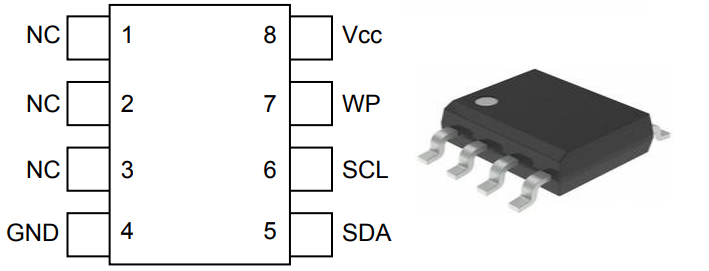

The following figure is the diagram of AT24C16C pinout.
Pinout
The followings are AT24C16C Symbol, Footprint, and 3D Model.

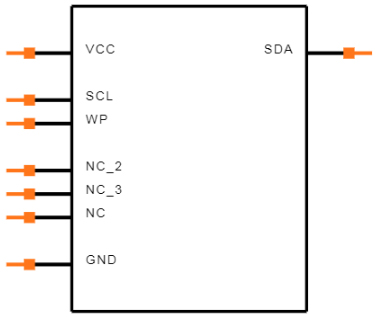

Symbol

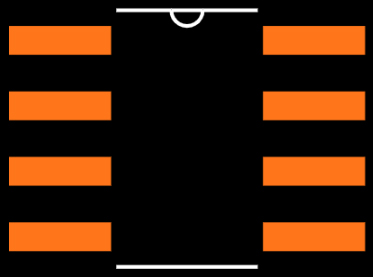

Footprint

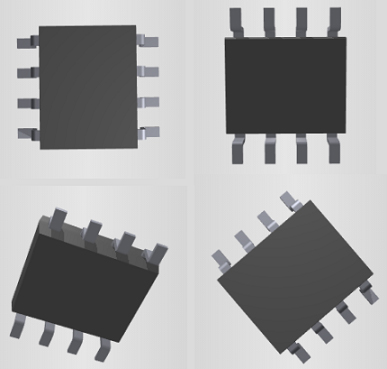

3D Model
The AT24C16C provides 16,384 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 2,048 words of 8 bits each. This device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential. The device is available in space-saving 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP, 5-lead SOT23, 8-ball VFBGA and 8-pad XDFN packages. All packages operate from 1.7V to 5.5V.
This article provides you with a basic overview of the AT24C16C I²C-Compatible Serial EEPROM, including its pin descriptions, features and specifications, etc., to help you quickly understand what AT24C16C is.
● Low-Voltage Operation:
◆ VCC = 1.7V to 5.5V
● Internally Organized as 2,048 x 8 (16K)
● Industrial Temperature Range: -40°C to +85°C
● I2C-Compatible (2-Wire) Serial Interface:
◆ 100 kHz Standard mode, 1.7V to 5.5V
◆ 400 kHz Fast mode, 1.7V to 5.5V
◆ 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
● Schmitt Triggers, Filtered Inputs for Noise Suppression
● Bidirectional Data Transfer Protocol
● Write-Protect Pin for Full Array Hardware Data Protection
● Ultra Low Active Current (3 mA maximum) and Standby Current (6 μA maximum)
● 16-Byte Page Write Mode:
◆ Partial page writes allowed
● Random and Sequential Read Modes
● Self-Timed Write Cycle within 5 ms Maximum
● ESD Protection > 4,000V
● High Reliability:
◆ Endurance: 1,000,000 write cycles
◆ Data retention: 100 years
● Green Package Options (Lead-free/Halide-free/RoHS compliant)
● Die Sale Options: Wafer Form
Microchip Technology AT24C16C-SSHM-T technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology AT24C16C-SSHM-T.
Microchip Technology AT24C16C-SSHM-T technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology AT24C16C-SSHM-T.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 7 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Memory Types | Non-Volatile | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| Published | 1997 | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 8Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Voltage - Supply | 1.7V~5.5V | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 2.5V | |
| Terminal Pitch | 1.27mm | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | AT24C16C | |
| Supply Voltage-Max (Vsup) | 5.5V | |
| Supply Voltage-Min (Vsup) | 1.7V | |
| Interface | 2-Wire, I2C, Serial | |
| Memory Size | 16Kb 2K x 8 | |
| Nominal Supply Current | 3mA | |
| Clock Frequency | 1MHz |
| Product Attribute | Attribute Value | |
|---|---|---|
| Access Time | 550ns | |
| Memory Format | EEPROM | |
| Memory Interface | I2C | |
| Memory Width | 8 | |
| Write Cycle Time - Word, Page | 5ms | |
| Density | 16 kb | |
| Serial Bus Type | I2C | |
| Write Cycle Time-Max (tWC) | 5ms | |
| Length | 4.925mm | |
| Height Seated (Max) | 1.75mm | |
| Width | 3.9mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

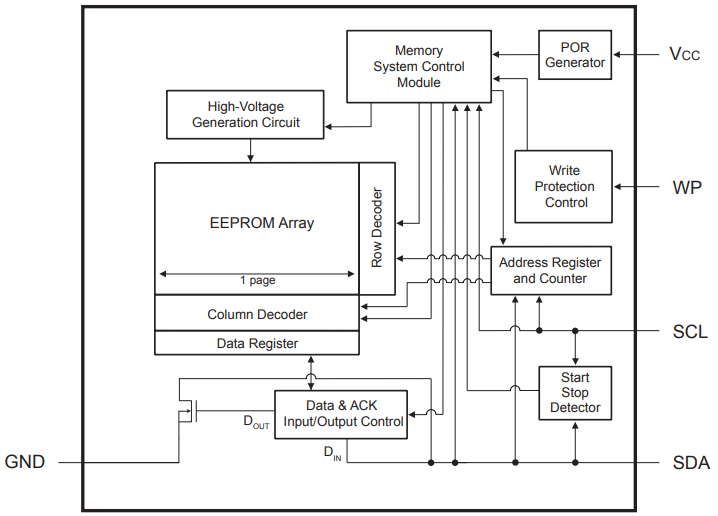

The following is the Block Diagram of AT24C16C.
Block Diagram
| Model number | Manufacturer | Description |
| 24AA16T/STRVD | Microchip Technology Inc | 2K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO14, 0.150 INCH, PLASTIC, SOIC-14 |
| M24C16-RCT5TP | STMicroelectronics | I2C/2-WIRE SERIAL EEPROM |
| BR24G16FVJ-3GTE2 | ROHM Semiconductor | EEPROM, 2KX8, Serial, CMOS, PDSO8, TSSOP-8 |
| M24C16-FCT5P | STMicroelectronics | I2C/2-WIRE SERIAL EEPROM |
| M24C16-FCS6TP/S | STMicroelectronics | I2C/2-WIRE SERIAL EEPROM |
| M24C16-RCS5P | STMicroelectronics | I2C/2-WIRE SERIAL EEPROM |
| BR24G16FVT-3AE2 | ROHM Semiconductor | EEPROM, 2KX8, Serial, CMOS, PDSO8, TSSOP-8 |
| AT24C16C-WWU11M | Microchip Technology Inc | AT24C16C-WWU11M |
| M24C16-FCS6G/S | STMicroelectronics | I2C/2-WIRE SERIAL EEPROM |
| 24AA16T-I/SNRVC | Microchip Technology Inc | 2K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, MS-012, SOIC-8 |
The following diagrams show the AT24C16C package.

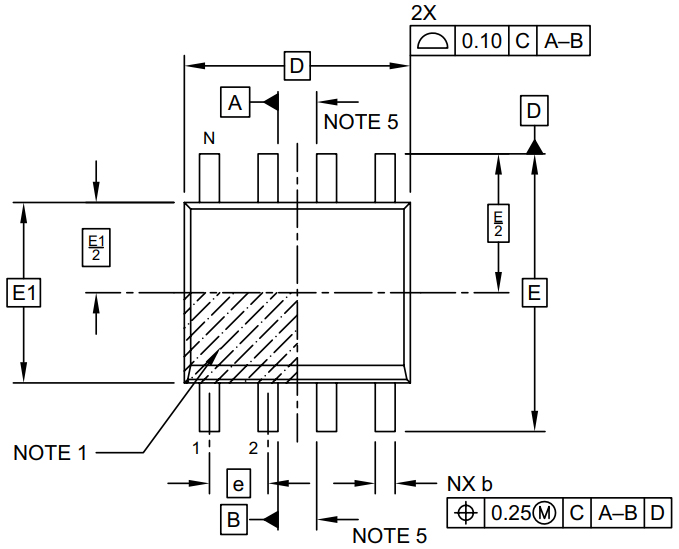

Top View

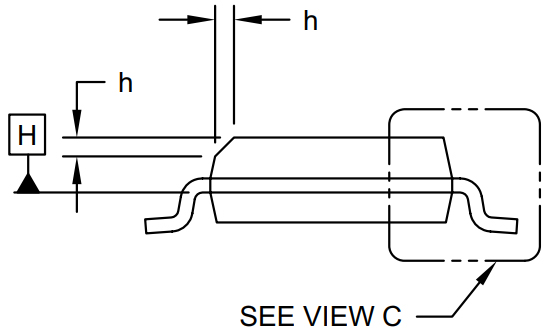

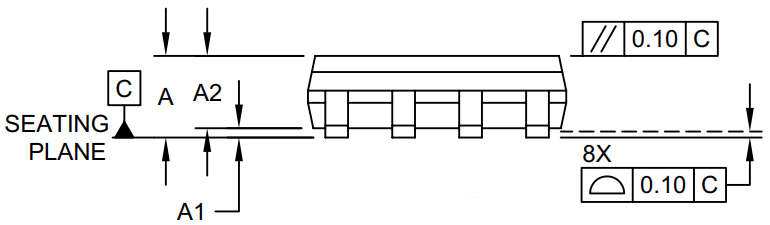

Side View
View A-A

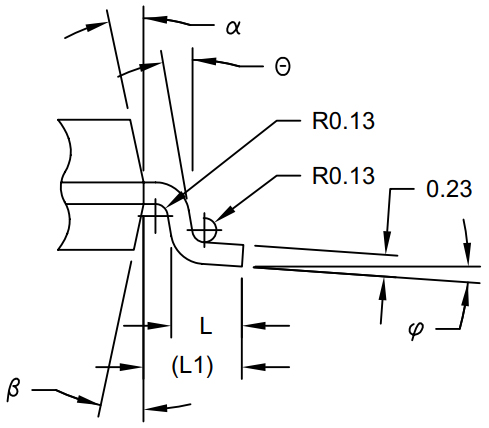

View C

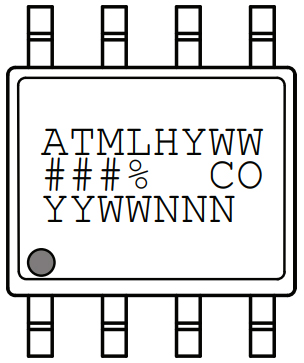

The following diagram shows the AT24C16C Package Marking Information.
Package Marking Information

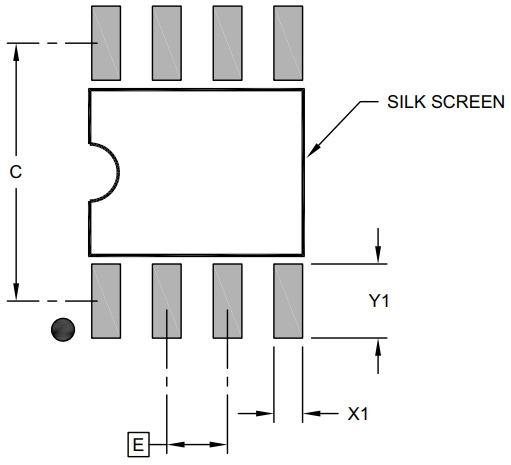

The following diagram shows the AT24C16C Recommended Land Pattern.
Recommended Land Pattern
Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
Download datasheets and manufacturer documentation for AT24C16C-SSHM-T
